| 프레임 |

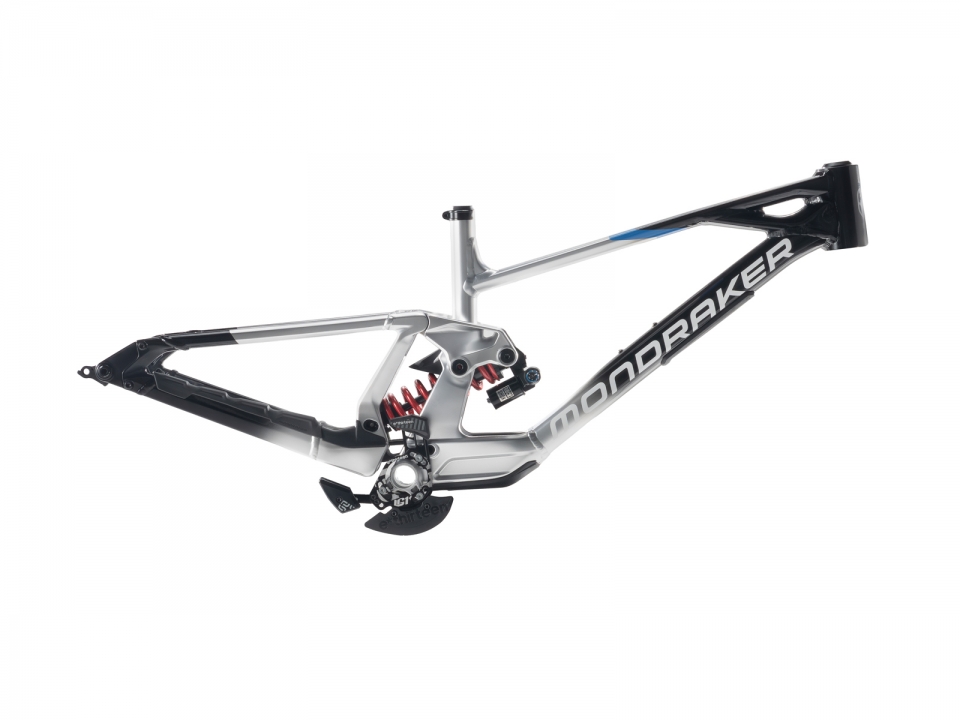

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bear |
| 사이즈 |
M / L / XL |
| 리어 서스펜션 |
RockShox Vivid Coil Ultimate, 225x75mm, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| 서스펜션 세팅 |
Medium compression, linear rebound. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs |
| 포크 |
RockShox Boxxer Ultimate 29,Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: High/low-speed compression, rebound, air preload |
| 헤드세트 |
Onoff DH ARS (Adjustable Reach System) 1-1/8”, 1-1/8” steerer tube, 41x30x7 451x45º sealed bearings, reach kit cups( +-5 mm) |
| 핸들스템 |
Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer |
| 핸들바 |
Onoff S6 1.0 7050 alloy, rise: 25 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore |
| 핸들그립 |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| 시트포스트 |
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm |
| 안장 |
Ergon SM10 DH Black |
| 앞 브레이크 |
Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| 뒷 브레이크 |
Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| 브레이크 레버 |
Sram Maven Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust |
| 림 |
DT Swiss EX 1700 Classic, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear |
| 스포크 |
DT Swiss Competition, straightpull |
| 프론트 허브 |
DT Swiss 350, Boost 20x110mm, IS 6 bolts |
| 리어 허브 |
DT Swiss 350 Classic with 72T Ratchet DEG System, 12x157mm, IS 6 bolts, XD freehubb |
| 프론트 타이어 |
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead |
| 리어 타이어 |
Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead |
| 크랭크 세트 |
Sram XX DH T-Type, DUB axle, Direct mount chain ring, 160mm CL 56´5 |
| 링 |
36T, Aluminium T-Type |
| 바텀 브라켓 |
Sram DUB BSA, sealed bearings, 83mm |
| 체인 |
Sram X0 Eagle T-Type, 12s Flattop, Powerlock |
| 앞 변속기 |
E.13 LG1+ Compact Upper Slider, Alloy backplate, DMB (Direct mount Bashguard) Lower Slider 36-38T, ISCG 05 adjustable upper slider |
| 뒷 변속기 |
Sram XX DH AXS, T-type, 7s |
| 시프트 레버 |
Sram Eagle AXS Pod |
| 카세트 |
Sram XS 797 10-24T, 7s |
| 무게 |
18.9 kg |
